12V Touch Control Panel 6 Buttons with CELLPHONE APP CONTROL via BLUETOOTH / 35A
Original price
$172.00
-
Original price
$192.00
Original price
$172.00
$172.00
-
$192.00
Current price
$172.00
Availability:
In stock

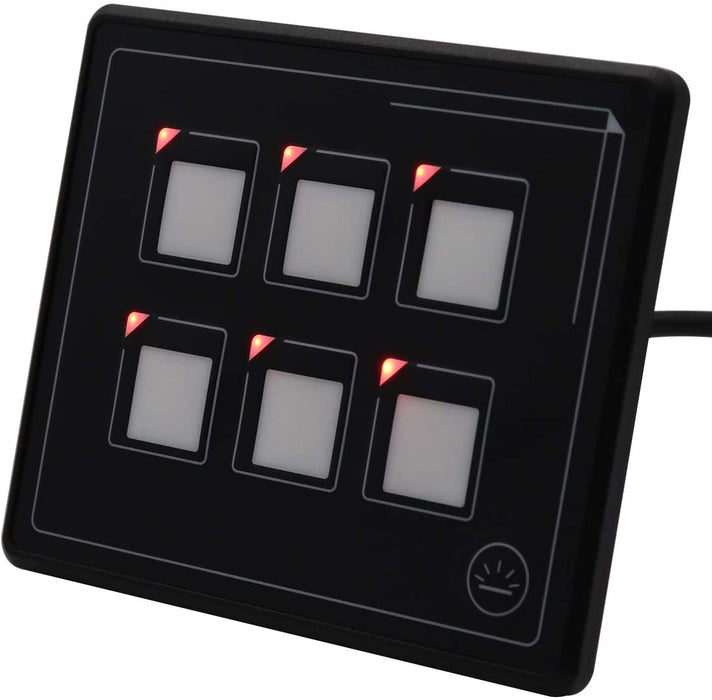

The touch-sensitive 6 Pin LED Bluetooth compatible switch panel provides power to your van, camper, boat, yacht and caravan, radio, etc. It has built-in resettable fuses, is circuit protected and the membrane plate is water-resistant. It's easy to wire all accessories. Each switch allows for 10A for a total of 35A cumulative. There is a USB cable for attaching the control relay box to the touch screen (1m). Upgradeable to use a 20A plug.
FEATURES
- Ultra-Compact panel size (60% smaller than traditional panels)
- Easy to install; almost no mounting depth required (Ø .5" or 12.5mm)
- Using compact, readily accessible micro-USB cables, the end-user can replace cables of any desirable length

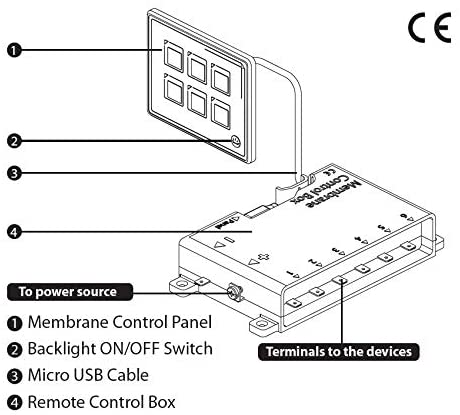

- Flexible wiring – Control Relay Box installed 1m away from the touch panel
- IP67 – protection against strong water jets (Panel Only)
- ON-indication LED / 10A Self-resettable fuse for each branch
- The Backlight module allows easy operation in darkness
- Very low standby current (90% lower than previous models)
- Programmable momentary button – all buttons can be programmed to be momentary (ideal for horn or wiper applications)
- 60pcs Assorted Graphic and Text labels stickers set included
- Bluetooth app compatible

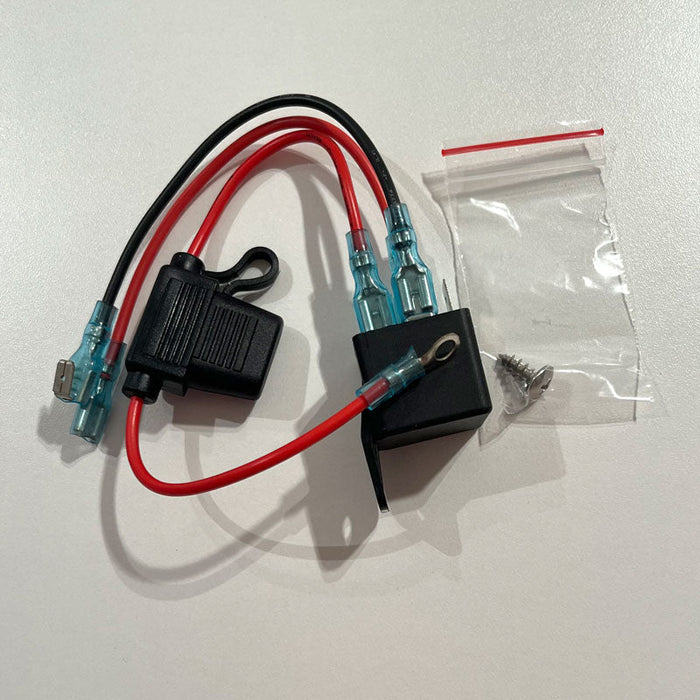

- Upgrade one port to 20A
SPECIFICATION
- Faceplate | PET membrane touch panel
- Circuit Protection | Built-in Resettable Fuse (PPTC)
- Switch Ratings | 10A per branch @ DC 12V
- Panel Rating | Max Cumulative Amp: 35A
- Voltage Rating | DC 9 - 15V (12V Model)

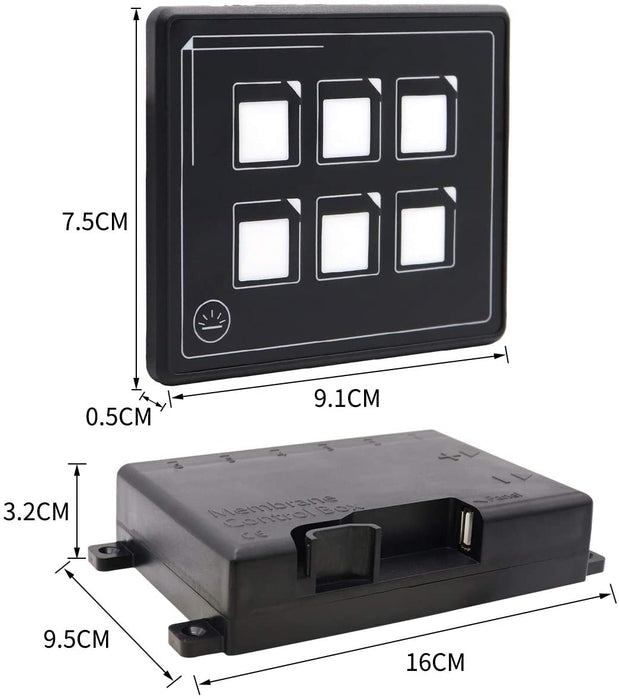

DIMENSIONS
- Panel Dimensions | (W x H) 3.5"x2.95"/ 91 x 75mm
- Control Box Dimensions | (H x W x D)5.35"x3.5"x1.25" / 136 x 90 x 32 mm
- Panel Cut-out (W x L) | ø .5"/15 mm (13 x 8.5 mm)
